PRODUCTS
LS-949

The LS - 949.

UHF800MHZ four-way wireless meeting microphone

Use the UHF740-840 MHZ band, to avoid interference.

The transmitter is equipped with high and low power adjustment and volume adjustment.

Meeting the goose pole adopts aviation plug, not afraid to loose.

Using multilevel narrow-band high frequency and medium frequency narrowband filtering, fully eliminate the interference signal.

Using quartz oscillation circuit, high frequency stability.

Using high frequency compression extension technology, greatly reduce the noise and dynamic range.

There is the function of doping call down less, can effectively reduce the lost call back.

Receiver using multilevel high frequency amplifier has a very high degree of sensitivity.

Noise level locking double mute control, noninterference more machine used at the same time.

Has a balance and imbalance way audio output.

Wide frequency response range. Low distortion.


Comprehensive performance

Carrier frequency bands: UHF740-840 MHZ

Frequency stability: < + 20 PPM

Dynamic range: 95 db

Harmonic distortion: < 0.5%

18 KHZ frequency corresponding: 50 hz ~ + 3 db

Audio output: balance type: 0 ~ 700 mv (6.3 mm) mixed type: 0 ~ 300 mv

Launch accessories: UT ~ 08 t

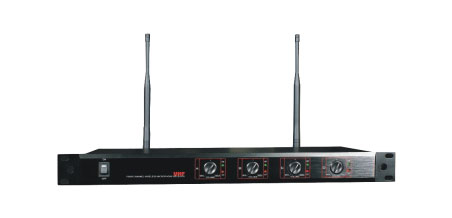

Stationary receiver

Use the power supply voltage: DC15 ~ 18 v

Power consumption: 5 water

Signal to noise ratio: > 98 db

Illusion interference than: > 80 db

Adjacent-channel interference than: > 80 db

Receiving sensitivity: > 5 is a (SINAD = 20 db)

Product size: 482 x210x43mm

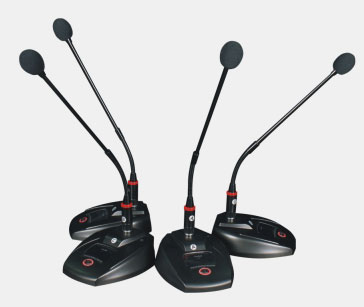

The meeting microphone

Happen power: + 10 DBM

Modulation method: FM, F3F

The most major system: + 40 KHZ

Higher harmonic: 50 db below the main wave

2 use the power supply voltage: 1.5 V batteries

Continuous use time: 10 hours
