Professional speaker processor DP - series

DIGITAL SPEAKER MANAGEMENT SERIES

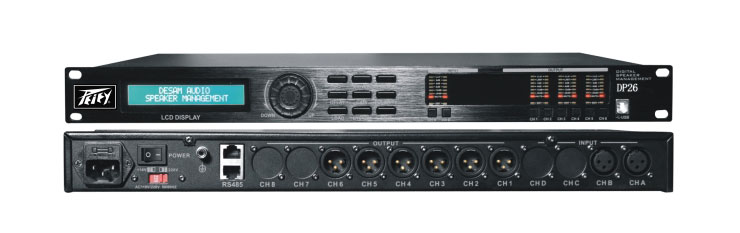

DP - 26 \ DP - 48

96 KHZ sampling frequency, 32 - BITDSP processor, 24 to BITA \ D and D/A conversion.

Input two to four output, there are 2 input output, 2 input output, there are 3 input output, with 4 input output, with 4 input 8 output a variety of models to choose, a flexible combination of a variety of classification model, high and low pass classified point all of 20 hz - 20 KHZ.

Provide USB and RS485 interface, can connect computer, through the RS485 interface can connect 250 machines and more than 1500 metres for external use computer to control.

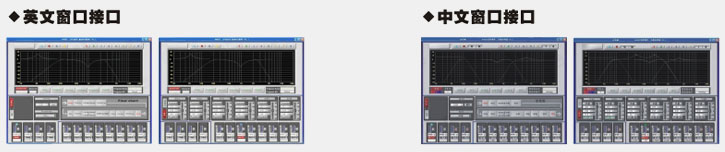

Directly using the function keys and dial the lose of the panel feature set or connect the computer through the PC control software to control, is very convenient, intuitive and simple.

Single machine can store 30 kinds of user program.

Through panel SYSTEM button to set the password lock panel control function, in order to prevent the operation of sundry to destroy the working state of the machine.

Each input and output are 6 paragraph independent parameter setting adjustment range can be up to + 20 db gain, while output channel equalization can choose LO - SHELF and HI - SHELF two slope way.

2 + 24 blue backlit LCD display Settings, section 8 of the LED display the exact figure for input, output, level meter, the tone, and editing.

Each input and output are all in delay and phase control and the tone is set, the longest delay of up to 1000 MS, delay unit can choose autumn (MS), M (M), feet (FT) three.

Output channel can also gain control, voltage limit and select input channel signal, and all the signals of the gansu channel can be copied to another channel of linkage control.

Can be controlled via USB or RS485 interface connection matrix and the channel of the tone.
