PRODUCTS

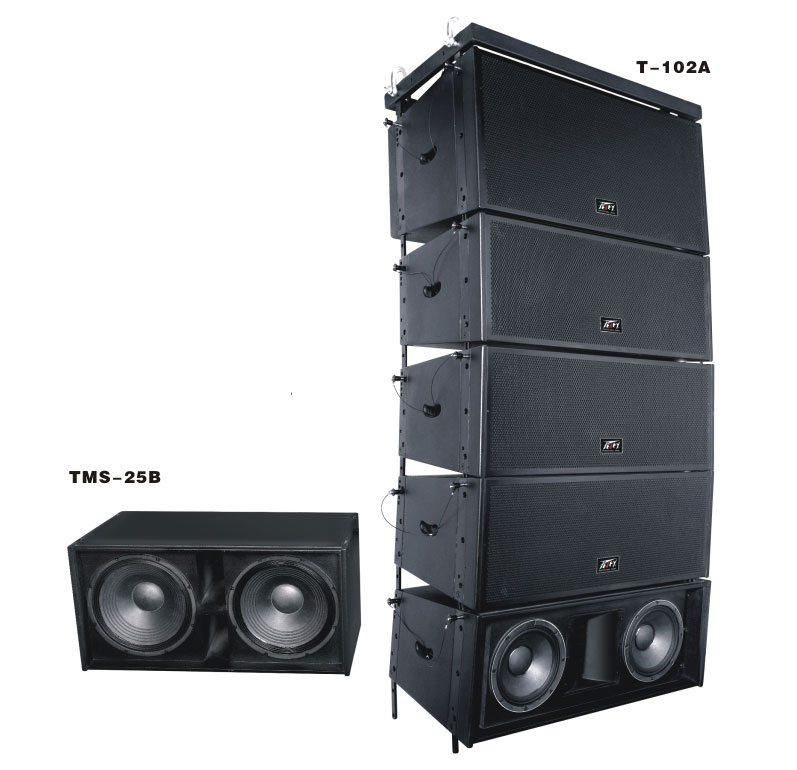

T-102A.TMS-25B

T - 102 - a series of products for large-scale performances and the non-linearity of voice quality requirements and design a special speaker (multi-function) performance, its biggest feature is the high clear and bright, alto plump, bass strong, high sound pressure level, noise reduction degree is high, it can meet the voices of high degree of reduction, environmental situations required by the non-linearity.

T - 102 - a soprano with 44 cores, 1.5 -inch 140 magnetic high drive, throat and mouth PV titanium compound vibration membrane, to ensure the high resolution also widened the high frequency width.

The patent design KLING - M5 waveguide horn shunt treble horn, greatly eliminates the sound wave interference, increase the voice clarity and consistency. At the same time also produces high sound pressure level.

The bass unit using axisymmetric design concept, a 10 inch around each, 75, 170 magnetic fiber aluminum frame. Paper basin, drawing, voice coil adopt imported materials, elaborate.

Advanced BASSBOXPRO \ X - OVER a computer aided design of passive built-in frequency division circuit, reduced because of the external points frequency and system link to the site operation and trouble unique 16 ohms high impedance circuit design, effectively improve the speaker of the damping coefficient, reducing the need for power allocation problem of many sets of the disadvantages of efficacy, improve the efficiency of the effect, reduce the cost of investment. Ensure the stability of the system. (a power amplifier can push four speakers).

TMS - 25 b is T - 102 - a system for supporting the bass compensation ultra-low speakers. Cooperate to use can make the wider the range of a series, the bass is more forceful.

USES high-density 18 mm birch plywood enclosure, and adopted the high durability of the black box body surface polyurethane paint. Such speakers anti-aging intensity is very strong, can the incarnation, the appearance of durable for a long time, and installed in the harsh environment, such as indoor but also can prevent moisture, installation, equipped with standard hanging device can meet the installation requirements of different occasions.

This box is applicable to the gym. The theatre. DISCO nightclub. Outdoor entertainment such as small and medium-sized performances.

Require wider sound field effect, available A18. 28 M - such as ultra-low frequency box used together, can have a better sound effect.



技 术 参 数    TECHNICAL SPECIFICATIONS



 MODE

T-102A

TMS-25B



W)POWER RATING

450

800



(OHM)NOMINAL LMPEDANCE

12

4

高 频 驱 动 器

HF COMPONENT

44*1



低 频 驱 动 器

LF COMPONENT

10"*2

15"*2



NOMINAL COVERAGE

80*17





(DB)SENSITIVITY(1W/1M)

107

102

最 大 声 压 级

(DB)MAXXIMUM PEAK SPL

129

121



(HZ)FERQUENCY RESPONSE

48-20000

34-2000



(W*D*H)DIMENSIONS

940*360*460

940*465*520
