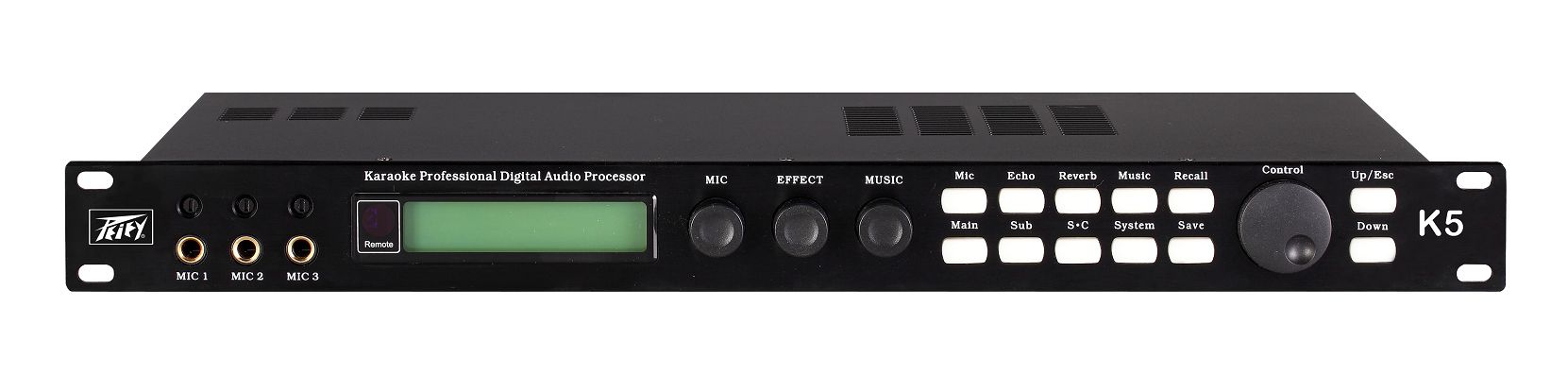

本產品採用24-bit高性能DSP及AD/DA轉換處理,頻帶寬,動態大,48KHZ採樣頻率的專業數字卡拉OK處理器;
專業DSP數字處理,具有強大靈活的編輯和控制功能;
高質量的專業演唱效果(混響,回聲,混響+回聲);
自動數字聲反饋抑制功能,可以有效控制令人煩惱的聲反饋嘯叫;
音頻處理功能齊全,前面板可以進行控制,調節,LCD顯示,全數字參數調整,操作更方便,快捷;
三組音頻自動優先輸入,一路音頻信號輔助輸出,一路主聲道輔助輸出;
AUX立體聲輸入,5.1聲道輸出;
30種預置效果,其中8種可直接調用,22種自編效果;
20*2藍色背光源白色字符LCD顯示屏,顯示更直觀;
VOD點歌系統外接輸入口,無線紅外遙控;
RS232電腦實時控制,界面操作更方便直觀。
This product USES 24 - bit high performance DSP and the AD/DA conversion processing, wide frequency band, large dynamic, professional digital karaoke 48 KHZ sampling frequency processor;
Professional DSP digital processing, powerful and flexible editors and control functions;
High quality professional singing effect (reverb, echo, echo of reverberation +);
Automatic digital acoustic feedback inhibition function, can effectively control the disturbing sound feedback noise;
Audio processing function is all ready, the front panel can be control, adjustment, LCD display, digital parameter adjustment, operation more convenient, fast;
Three sets of audio automatic priority input, aux output audio signal, all the way along the main channel aux output;
AUX stereo input, 5.1 -channel;
, including 30 species of preset effect can be called directly, 22 kinds of editing the effect;
20 * 2 blue back light white character LCD display, show more intuitive;
External input port VOD VOD system, wireless infrared remote control;
RS232 real-time control computer, interface is more convenient and intuitive.
技 術 參 數 TECHNICAL SPECIFICATIONS | |||
型 號 |
|
K-5 | |
音樂部分 |
MIC部分 五路MIC輸入 | ||
信噪比 |
大於95DB直通 |
信噪比 |
大於95DB直通 |
失真度 |
0.1%20HZ-20KHZ |
失真度 |
0.07%20HZ-250HZ |
最大輸出 |
8Vpp/60ohm |
頻率響應 |
50HZ∽16KHZ |
輸入阻抗 |
4.7K ohm |
輸入靈敏度 |
0.707V |
輸入靈敏度 |
0.707V |
輸出阻抗 |
4.7K ohm |
EQ低 |
100HZ∽600HZ |
均衡 |
250HZ∽10KHZ |
EQ中 |
600HZ∽2000HZ |
EQ低 |
100HZ∽400HZ |
EQ高 |
2KHZ∽15KHZ |
EQ中 |
2KHZ∽4KHZ |
三音路音頻輸入 |
|
EQ高 |
4KHZ∽15KHZ |
一路音頻輔助輸出 |
4Vpp/60ohm平衡輸出 |
中置輸出靈敏度 |
0.707V |
一路主聲道輔助輸出 |
4Vpp/60ohm平衡輸出 |
中置輸出阻抗 |
4.7K ohm |
輸出靈敏度 |
1Vpp |
左右輸出靈敏度 |
0.707V |
輸出阻抗 |
750 ohm |
左右輸出阻抗 |
10K ohm |
SUBWOOFER |
|
Rs232接口<, SPAN lang=EN-US> |
九芯串口母座 |
失真度 |
0.07%20HZ∽250HZ |
電源電壓 |
AC200V∽240V 50HZ |
頻率響應 |
20HZ∽250HZ 0.5DB |
電源消耗 |
10W |
