产品展示
PRODUCTS

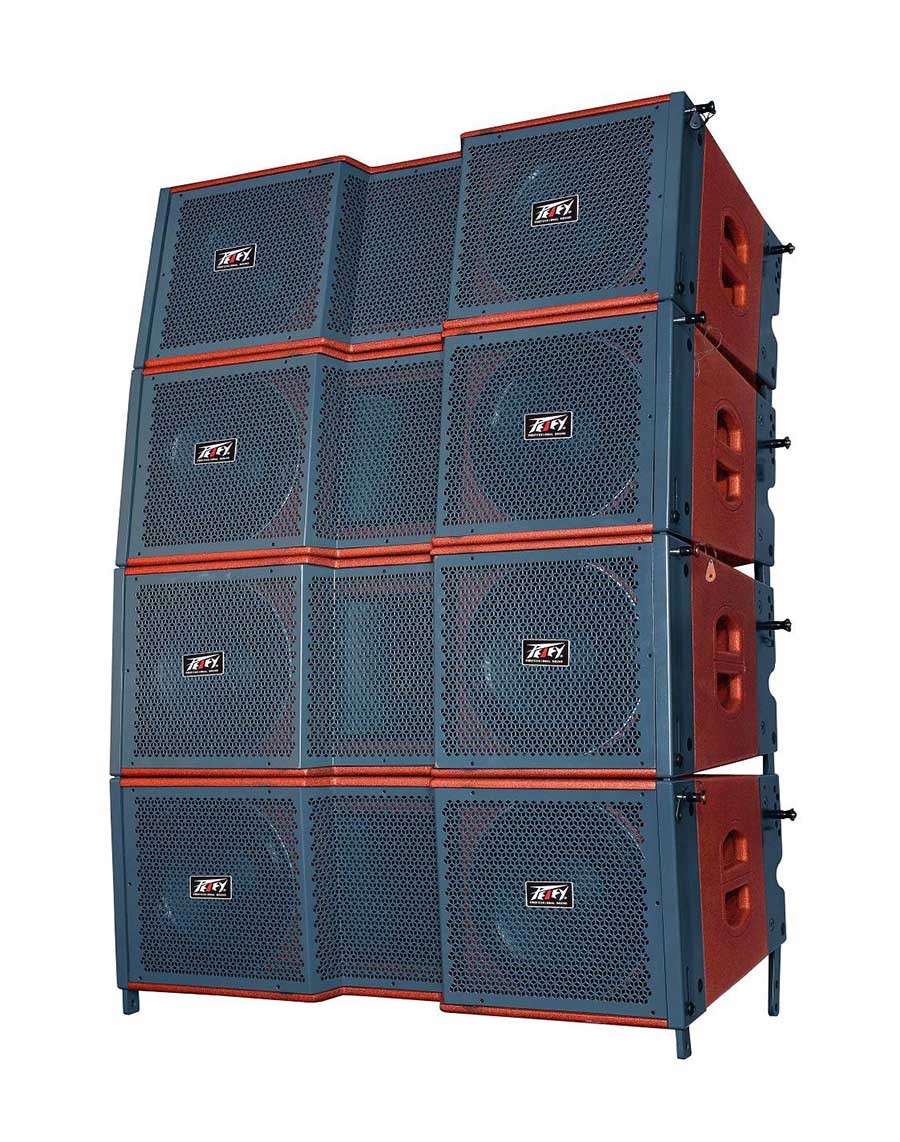

VS-4612

        VS-4612線性音箱是針對中小型演出市場需、且性價比非常高、設計的專用(多功能)演出音箱,其最大的特點高音清晰明亮,中音飽滿圓潤,低音強勁有力,聲壓級高,人聲還原度高,恰恰滿足了對人聲高還原度,高聲壓級要求的環境場合使用。
       采用先進的BASSBOXPRO\X-OVER電腦輔助設計的無源內置分頻電路,減少了因外置分頻帶給現場操作及係統鏈接麻煩獨特的12歐姆高阻抗線路設計有效的提高了音箱的阻尼係數,減少了因功率分配問題而需要的多台功放的弊端。提高的功放的效率減少了投資的成本。保證了係統的穩定性。(一台功放可以推動四隻音箱)
       全係列音箱揚聲器采用獨特的軸對稱設計。左右各一隻低音單元,中間為高音單元。其優點是左右聲像對稱,軸向輻射扇形柱麵波型增強。減少了因相位差而產生的聲壓影響。
       高音采用1隻75芯 170磁高音單元。
       低音采用2隻75芯190磁的12寸低音單元
       箱體采用18mm高密度樺木夾板,而箱體表麵采用了耐久度高的黑色聚亞安酯點漆。這樣的音箱的抗老化強度方麵非常強,能長期經受日曬雨淋,持久耐用的外表,而安裝在戶內更是能防止潮濕等惡劣的環境,安裝方式配備標準吊掛裝置,可滿足不同場所的安裝要求。
      ●此音箱適用於體育館、劇院、DISCO、夜總會、中型演出等娛樂場所。
      ●要求更寬的音場效果時,可用VT-218等超低頻箱組合在一起使用,會有更好的音場效果。





       VS - 4612 linear speaker is targeted at small and medium-sized market performance, and very high cost performance, the design of special speakers (multi-function) performance, its biggest characteristic high-pitched clear and bright, alto full fruity, bass strong, high sound pressure level, vocals, reductive degree is high, it can meet the voices of high degree of reduction, environmental situations required by the non-linearity.
       Advanced BASSBOXPRO \ X - OVER a computer aided design of passive built-in frequency division circuit, reduced because of the external points band system link to the site operation and trouble unique 12 ohms high impedance circuit design can improve the speaker of the damping coefficient, reducing the need for power allocation problem of many sets of power amplifier.To improve the efficiency of the power amplifier to reduce the cost of investment.Ensure the stability of the system.(a power amplifier can push four speakers)
        Full range of sound box loudspeaker adopts the unique design of axisymmetric.A bass around each unit, the middle of the high unit.Its advantage is about audio-visual symmetry, the axial fan cylindrical wave radiation pattern.To reduce the effects due to phase difference of sound pressure.
High magnetic high unit using 1 75 75.
        Bass with 2 190 75 core magnetic only 12 inch bass unit
        USES high-density 18 mm birch plywood enclosure, and adopted the high durability of black box body surface polyurethane paint.Such speakers anti-aging has very strong strength, long-term the incarnation, the appearance of durable, and installed in the harsh environment, such as indoor but also can prevent moisture, installation is equipped with standard hanging device, can meet the installation requirements of different places.
       When this box is applicable to the gym, theatre, DISCO, nightclubs, entertainment such as medium performance.
       For wider sound effects low, available n - 218 such as ultra-low frequency box used together, can have a better sound effect.







技 術 參 數    TECHNICAL SPECIFICATIONS



 MODE

VS-4612



SYSTEM COMPOSITION

兩路二單元超低頻音箱



LOUDSPEAKER

低音:12*275170

高音:75*1鈦膜高音



(OHM)NOMINAL LMPEDANCE

12



W)POWER RATING

650W

最大 承受 功率

(W)MAXIMUM INPEDANCE

1000W

     範 圍

(HZ)FERQUENCY RESPONSE

48-20KHZ



(DB)SOUND PRESSURE LEVEL(SPL)

118DB(峰值)



NOMINAL COVERAGE

110*40



CONNECTOR

NL4MP*2



HANG





(W*D*H)DIMENSIONS

1028*490*360MM
