产品展示
PRODUCTS

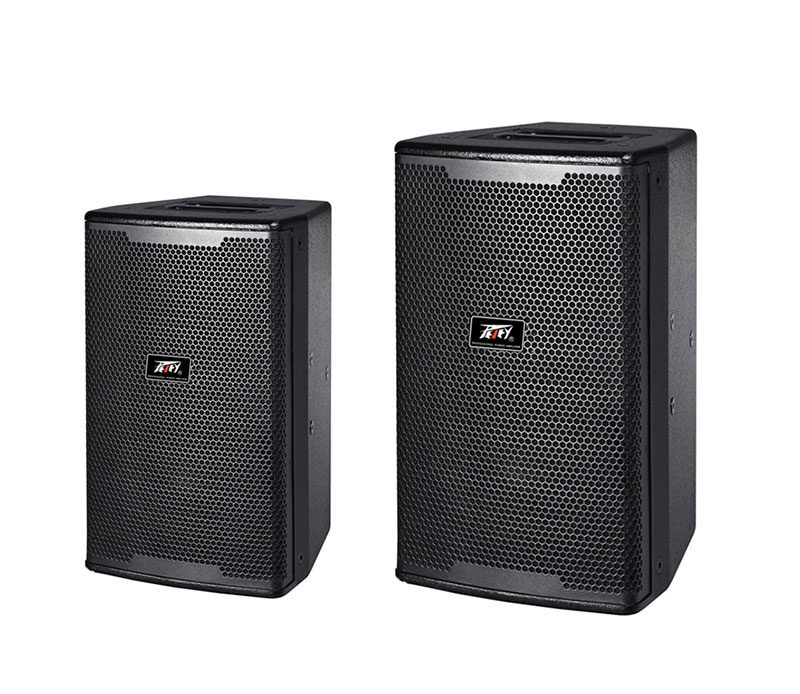

KP-610 KP-612
高檔商務KTV首選的利器
KP6係列是我司針對目前高檔量販式KTV, 會所、夜總會、酒吧等使用途環境緊跟流行的潮流而設計開發的。
箱體全部采用樺雜夾板精工進槽製作而成保證箱體整體結構堅固,耐用.箱體表麵噴塗采用台灣綠色水性環保漆.油漆表麵漆膜硬度、彈性均有提高,同時還具有防水.耐磨. 耐腐蝕.附著力強、提升了環保意識等特點.延長了音箱的使用壽命.
鐵網采用1.5mm防鏽處理冷軋鋼板，六角孔模具衝壓而成.表麵采用工藝要求更高的噴砂工藝，內貼3mm海綿即起到防塵作用也提高了音箱的整體美觀。全頻音箱采用後導向開孔、特殊梯形箱體及號角設計,無論垂直、水平安裝，80*70覆蓋角度都可以提高均勻平坦的覆蓋範圍，除多點模式，標準吊掛裝置外，在箱體底部還設有金屬支架孔，可滿足不同場所的安裝使用要求. 可同單18、雙18超低頻箱組合在一起使用，會有更佳的音場效果。
KP6係列音箱采用世界先進的BASSBOX-OVER輔助設計軟件和DAAS聲學測試軟件設計而成，頻響曲線平滑，高頻清澈透亮、中頻自然飽滿圓潤，低頻強勁有力富有包圍感。(高低音單元均采用釹磁設計，靈敏度高，音色通透飽滿）
(1) 低音單元采用原裝進口紙盆、彈波、音圈進口材料製作而成。75芯銅包鋁遍線音圈,120釹鐵硼磁路.保證了在大功率的狀態下低音動態不失真的完美體驗. 低音強勁有力,包圍感豐滿.穩定耐用。（目前業內多用65芯180提洋鐵磁路，承載功率小，低頻下潛不足，容易損壞低音單元，國人除了K歌以外還要嗨一下，蹦一蹦，跳一下的士高，這就對低音單元的功率的承載能力有了一定的要求，我司為了保證產品的穩定性減少單元的損壞不惜成本的采用75芯的釹磁低音單元。）
(2) 高音采用44芯PU複合膜片100釹磁設計， 采用獨特的振膜處理技術及平滑的分頻設計電路，保證高音通透明亮細膩又不易嘯叫，中頻圓潤飽滿，人聲表現豐富。PTC高音保護電路有效的減少了高音的損壞。（一些品牌采用38芯70釹磁高音可以完全滿足K歌的需求，但是在播放一些嗨曲、慢搖、的士高等動態比較大的音樂時高音的動能就會稍差一些。傳統的KTV音箱，高音一般采用3寸的紙盆高音，因在使用過程中，由於人為的因素，功率承載因素、話筒嘯叫因素等等，經常發生高音燒壞的現象，因而影響了KTV的正常使用並增加了後期的維修成本、影響了經濟效益。KP6 44芯釹磁高音針對量販式KTV而言就可以有效地保證係統高音的使用壽命，減少維修的機率，降低了維修成本，提高了經濟效益。）
KP6係列是我司針對目前高檔量販式KTV, 會所、夜總會、酒吧等使用途環境緊跟流行的潮流而設計開發的。
箱體全部采用樺雜夾板精工進槽製作而成保證箱體整體結構堅固,耐用.箱體表麵噴塗采用台灣綠色水性環保漆.油漆表麵漆膜硬度、彈性均有提高,同時還具有防水.耐磨. 耐腐蝕.附著力強、提升了環保意識等特點.延長了音箱的使用壽命.
鐵網采用1.5mm防鏽處理冷軋鋼板，六角孔模具衝壓而成.表麵采用工藝要求更高的噴砂工藝，內貼3mm海綿即起到防塵作用也提高了音箱的整體美觀。全頻音箱采用後導向開孔、特殊梯形箱體及號角設計,無論垂直、水平安裝，80*70覆蓋角度都可以提高均勻平坦的覆蓋範圍，除多點模式，標準吊掛裝置外，在箱體底部還設有金屬支架孔，可滿足不同場所的安裝使用要求. 可同單18、雙18超低頻箱組合在一起使用，會有更佳的音場效果。
KP6係列音箱采用世界先進的BASSBOX-OVER輔助設計軟件和DAAS聲學測試軟件設計而成，頻響曲線平滑，高頻清澈透亮、中頻自然飽滿圓潤，低頻強勁有力富有包圍感。(高低音單元均采用釹磁設計，靈敏度高，音色通透飽滿）
(1) 低音單元采用原裝進口紙盆、彈波、音圈進口材料製作而成。75芯銅包鋁遍線音圈,120釹鐵硼磁路.保證了在大功率的狀態下低音動態不失真的完美體驗. 低音強勁有力,包圍感豐滿.穩定耐用。（目前業內多用65芯180提洋鐵磁路，承載功率小，低頻下潛不足，容易損壞低音單元，國人除了K歌以外還要嗨一下，蹦一蹦，跳一下的士高，這就對低音單元的功率的承載能力有了一定的要求，我司為了保證產品的穩定性減少單元的損壞不惜成本的采用75芯的釹磁低音單元。）
(2) 高音采用44芯PU複合膜片100釹磁設計， 采用獨特的振膜處理技術及平滑的分頻設計電路，保證高音通透明亮細膩又不易嘯叫，中頻圓潤飽滿，人聲表現豐富。PTC高音保護電路有效的減少了高音的損壞。（一些品牌采用38芯70釹磁高音可以完全滿足K歌的需求，但是在播放一些嗨曲、慢搖、的士高等動態比較大的音樂時高音的動能就會稍差一些。傳統的KTV音箱，高音一般采用3寸的紙盆高音，因在使用過程中，由於人為的因素，功率承載因素、話筒嘯叫因素等等，經常發生高音燒壞的現象，因而影響了KTV的正常使用並增加了後期的維修成本、影響了經濟效益。KP6 44芯釹磁高音針對量販式KTV而言就可以有效地保證係統高音的使用壽命，減少維修的機率，降低了維修成本，提高了經濟效益。）
High-end business KTV preferred tool
KP6 series is our company based on the current high volume type KTV, clubs, nightclubs, bars the use environment such as follows the popular fashion and design and development.
Boxes are all made of birch mixed plywood produced by seiko into the tank to ensure enclosure structure solid, durable. The body surface spray USES Taiwan green water-based environmental protection paint. Paint film surface hardness, flexibility were increased, at the same time also has waterproof. Wear-resisting. Corrosion. Strong adhesion force, promote the environmental protection consciousness, etc. To extend the service life of the speaker.
Cold rolled steel sheet iron network using 1.5 mm antirust processing, hexagonal hole stamping mould. Surface using higher sand blasting process technological requirements, with 3 mm sponge is dustproof effect also improves the speaker's overall appearance.All frequency sound box with the guide hole and the horn design, special trapezoidal enclosure, regardless of the vertical and horizontal installation, 80 * 70 cover Angle can improve the uniform flat coverage, in addition to more model, standard hanging device, also has a metal bracket hole at the bottom of the box body, can meet the installation requirement of different place. But with single 18, double 18 ultra-low frequency box used together, can have a better sound effect.
KP6 speaker series adopts world advanced BASSBOX - OVER aided design software and DAAS acoustic test software design, smooth frequency response curve, the high frequency of intermediate frequency natural and clear and bright, full round, surrounded by low-frequency strong rich feeling.(high and low unit adopt neodymium design, high sensitivity, sound appear a full)
(1) the bass unit adopts imported paper cone, elastic wave, voice coil produced by imported material.Copper clad aluminum wire again 75 core voice coil, 120 ndfeb magnetic circuit. Guarantee in high-power bass dynamic that never really perfect experience. Bass strong surrounded feeling fuller. Stable and durable.(currently 180 tinplate magnetic circuit, the multi-purpose 65 core carrying small power, low frequency dive, easy to damage the bass unit, people in addition to K song also hi, jump jump, dance the disco, the bearing capacity of the power of this on the bass unit have a certain demand, our company in order to guarantee the stability of the products to reduce the damage to the unit cost of using neodymium bass unit of 75 core.)
(2) high with 44 core PU composite film 100 neodymium design, adopt unique vibration membrane treatment technology and smooth frequency division circuit design, ensure the high transparent bright subtle and difficult to screaming, intermediate frequency sections satiated, rich in vocal performance.PTC high protection circuit reduces the damage of high effectively.(some brands use 38 core 70 neodymium high-pitched can completely meet the needs of K song, but in some HaiQu, slow roll, taxi higher dynamic comparative big music high kinetic energy will be a little less. The traditional KTV speakers, tweeters generally USES 3 inch paper cone soprano, in use process, due to human factors, load factors, microphone, the noise power, etc., high burned-out occur frequently, and thus affect the normal use of the KTV and increases the maintenance costs, has affected the economic benefits. In the late KP6 44 core neodymium treble against in terms of volume type KTV can effectively ensure the service life of high system, reduce the probability of maintenance, reduce the maintenance cost, improve the economic benefit.)
KP6 series is our company based on the current high volume type KTV, clubs, nightclubs, bars the use environment such as follows the popular fashion and design and development.
Boxes are all made of birch mixed plywood produced by seiko into the tank to ensure enclosure structure solid, durable. The body surface spray USES Taiwan green water-based environmental protection paint. Paint film surface hardness, flexibility were increased, at the same time also has waterproof. Wear-resisting. Corrosion. Strong adhesion force, promote the environmental protection consciousness, etc. To extend the service life of the speaker.
Cold rolled steel sheet iron network using 1.5 mm antirust processing, hexagonal hole stamping mould. Surface using higher sand blasting process technological requirements, with 3 mm sponge is dustproof effect also improves the speaker's overall appearance.All frequency sound box with the guide hole and the horn design, special trapezoidal enclosure, regardless of the vertical and horizontal installation, 80 * 70 cover Angle can improve the uniform flat coverage, in addition to more model, standard hanging device, also has a metal bracket hole at the bottom of the box body, can meet the installation requirement of different place. But with single 18, double 18 ultra-low frequency box used together, can have a better sound effect.
KP6 speaker series adopts world advanced BASSBOX - OVER aided design software and DAAS acoustic test software design, smooth frequency response curve, the high frequency of intermediate frequency natural and clear and bright, full round, surrounded by low-frequency strong rich feeling.(high and low unit adopt neodymium design, high sensitivity, sound appear a full)
(1) the bass unit adopts imported paper cone, elastic wave, voice coil produced by imported material.Copper clad aluminum wire again 75 core voice coil, 120 ndfeb magnetic circuit. Guarantee in high-power bass dynamic that never really perfect experience. Bass strong surrounded feeling fuller. Stable and durable.(currently 180 tinplate magnetic circuit, the multi-purpose 65 core carrying small power, low frequency dive, easy to damage the bass unit, people in addition to K song also hi, jump jump, dance the disco, the bearing capacity of the power of this on the bass unit have a certain demand, our company in order to guarantee the stability of the products to reduce the damage to the unit cost of using neodymium bass unit of 75 core.)
(2) high with 44 core PU composite film 100 neodymium design, adopt unique vibration membrane treatment technology and smooth frequency division circuit design, ensure the high transparent bright subtle and difficult to screaming, intermediate frequency sections satiated, rich in vocal performance.PTC high protection circuit reduces the damage of high effectively.(some brands use 38 core 70 neodymium high-pitched can completely meet the needs of K song, but in some HaiQu, slow roll, taxi higher dynamic comparative big music high kinetic energy will be a little less. The traditional KTV speakers, tweeters generally USES 3 inch paper cone soprano, in use process, due to human factors, load factors, microphone, the noise power, etc., high burned-out occur frequently, and thus affect the normal use of the KTV and increases the maintenance costs, has affected the economic benefits. In the late KP6 44 core neodymium treble against in terms of volume type KTV can effectively ensure the service life of high system, reduce the probability of maintenance, reduce the maintenance cost, improve the economic benefit.)
|
技 術 參 數 TECHNICAL SPECIFICATIONS |
|
||
|
型 號 |
MODE |
KP-610 |
KP-612 |
|
系 統 組 成 |
SYSTEM COMPOSITION |
兩路二單元低頻反射導孔 |
兩路二單元低頻反射導孔 |
|
揚 聲 器 |
LOUDSPEAKER |
低音：10寸*1 65芯170磁 |
低音：12寸*1 75芯120釹磁 |
|
高音：34芯*1 PU膜高音 |
高音：44芯*1 PU膜釹磁高音 |
||
|
額 定 阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8歐 |
8歐 |
|
額 定 功 率 |
（W)POWER RATING |
300W |
400W |
|
最大 承受 功率 |
(W)MAXIMUM INPEDANCE |
600W |
800W |
|
頻 響 範 圍 |
(HZ)FERQUENCY RESPONSE |
48-20KHZ |
45-20KHZ |
|
聲 壓 級 |
(DB)SOUND PRESSURE LEVEL(SPL) |
122DB(峰值） |
124DB(峰值） |
|
覆 蓋 角 度 |
NOMINAL COVERAGE |
80*70 |
80*70 |
|
連 接 插 孔 |
CONNECTOR |
NL4MP*2 |
NL4MP*2 |
|
吊 掛 |
HANG |
Φ10螺絲*22 |
Φ10螺絲*22 |
|
配 件 |
FITTINGS |
提手、底座 |
提手、底座 |
|
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
524*300* |
558*362* |
